OUR CAPABILITIES

We supply field fence fabrics, gates, posts, barbed wire for field fencing system.

In following weave style:
Fixed knot field fence
Hinged knot field fence
Ring lock fence
Square knot (S knot)

Used for:
Cattle fencing
Horse fencing
Deer fencing
Sheep fencing (4', 5', 6' height)
Coat Fencing
Camel Fencing

For following countries:
USA
Canada
Spain
Germany
Mauritius
Others

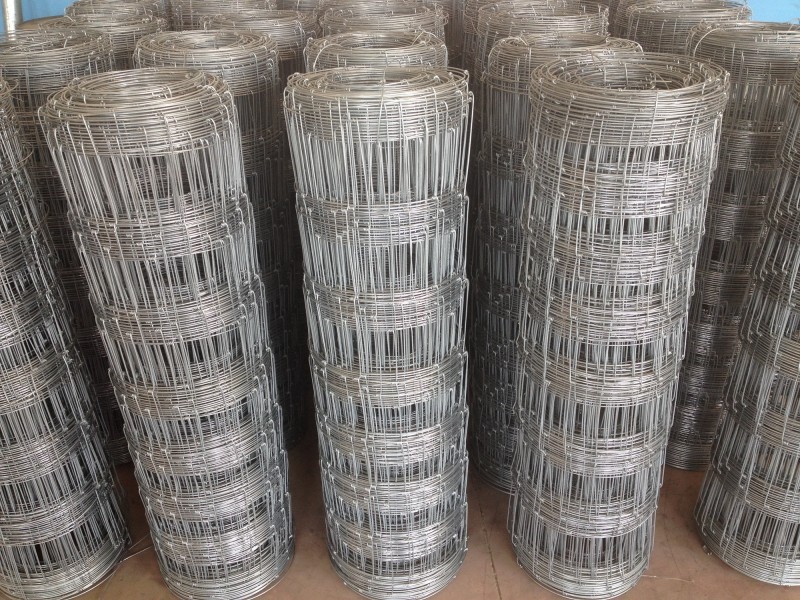

Hot Dipped Galvanized Field Fence

High tensile woven wire fence, heavily galvanised
Wire diameter 2.0mm ( middle wire) /2.5mm (bottom and top wire).
Type: 90/7/15.

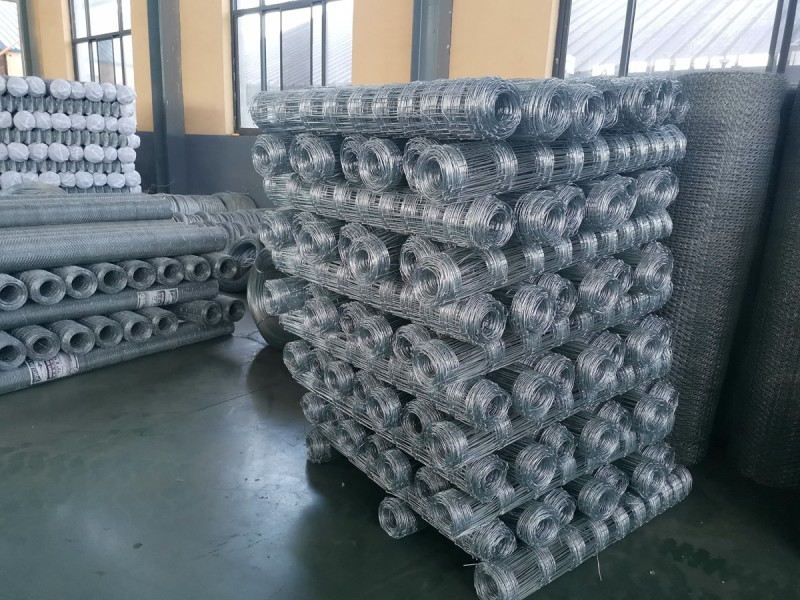

Supplied in 100 m rolls
Zinc coating: 240g/m2

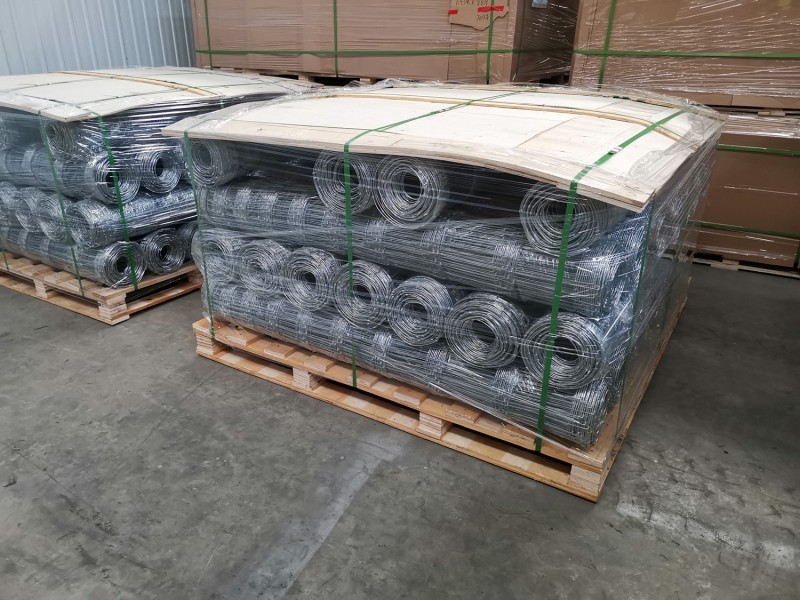

Packing on pallet

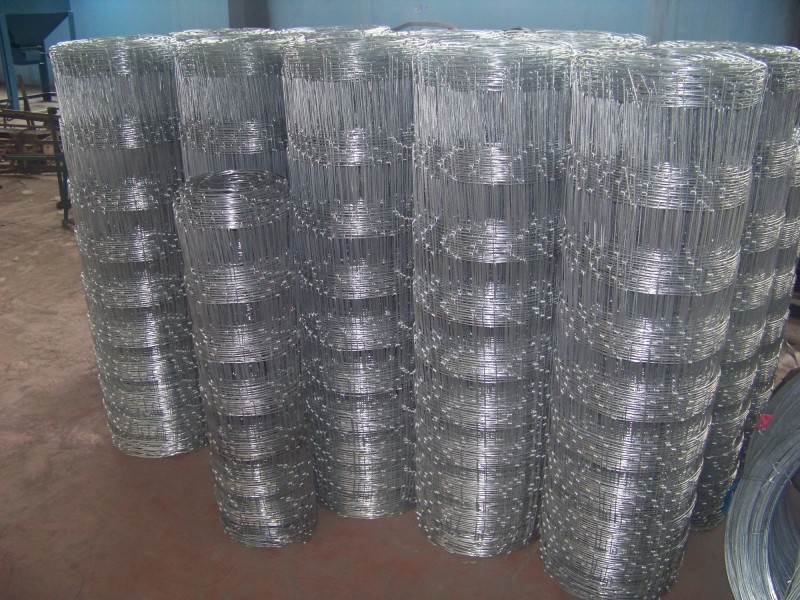

Field fence, hot-dipped galvanized
Zinc coating: 240g/m2
Wire diameter 2.5mm/3.0mm.
Type: 90/7/15
Supplied in 100 m rolls
Packing on pallet

Field fencing height:1.8m
Materials: Mild steel carbon wire, zinc coated.

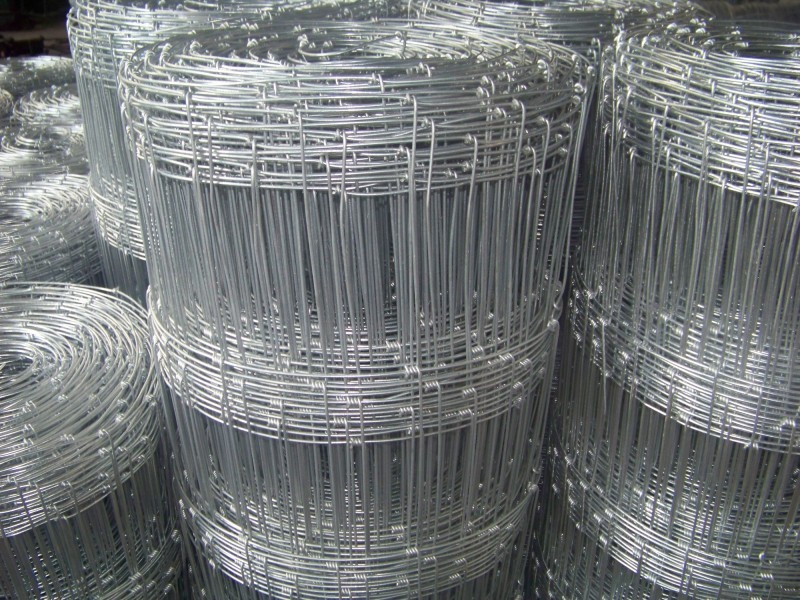

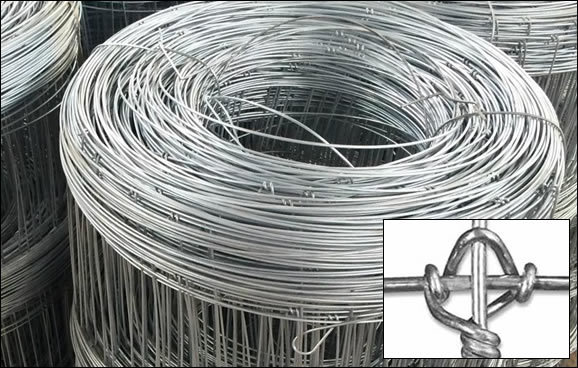

Fixed Knot Fence

Fabric: Galvanized mesh woven from high strength steel wire utilizing fixed knots to secure the vertical stay wires and the horizontal line wires together in a rigid manner.

Fixed knot fence, 8-10 feet tall, for keeping deer out of garden and yard
Panel type 13/188/15 ( 13 Horizontal Lines, 1880 mm height and 150 mm ).
Edge Wires : Bottom & Top 3 mm
Line Wires : 2.25 mm
Stay wires : 2.5 mm

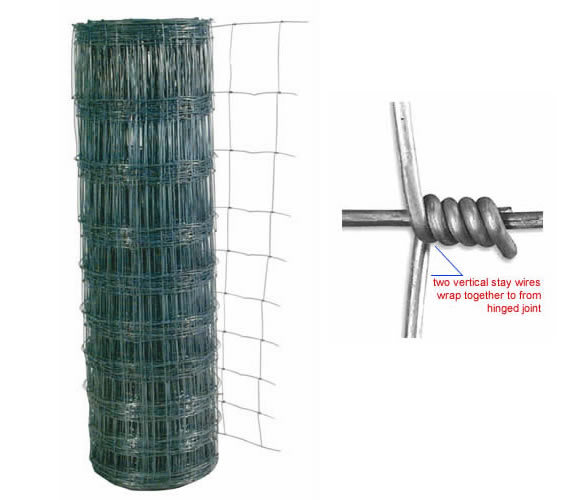

Hinged Joint Field Fence

Heavy Bull Wire Field Fence Hinged Joint Knot for USA market
Material specifications:
Hinged Knot Field Fence
Low Carbon 9 x 11 gauge Class-III
47" height x 330' length roll
10 horizontal wires x 6" stay spacing

Hinged Knot Field Fence
Low Carbon 9 x 9 gauge Class-III
47" height x 330' length roll
10 horizontal wires x 6" stay spacing
Finish: Hot dipped galvanized

Galvanized Iron Ring Lock Fence

Ring lock fences are high tensile knot woven wires mainly used in Australia, New Zealand and South Africa. Ring Lock is a design of a circular steel ring that locks vertical stay wires to horizontal line wires.

GI Ring Lock Fence – 2.0 m Height for Cattle, Goat, Camel Fencing
Galvanized Iron (GI) Ring Lock Fence

Ring Lock Fence Rolls-11 Rows

Fence Specifications:
Type: GI Ring Lock Fence
Height: 2.00 meter
Application: Camel fencing
Roll Length: 150 meters per roll
All metals except wires are hot dip galvanized as per EN ISO 1461
All fencing wires are galvanized as per EN 10244-2 Class A
Manufacturing tolerances will be applicable on sizes and dimensions

Documents Required:
Technical datasheet
Zinc coating & tensile strength test reports
Supply to Oman, UAE.

Y Post and Field fence of Various Zinc Coating GradeS

Field Fence Wire: Custom order accepted

APPLICATIONS

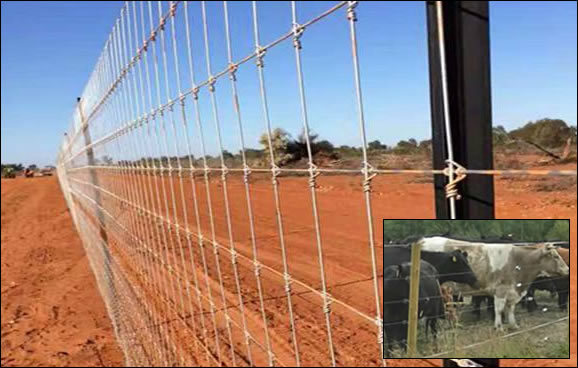

Cattle Fence

Field fence for Cattle farming, exported to Spain
Hinged joint type mesh fabric
Europe standard

1.8M high galvanized fence for cattle farmers

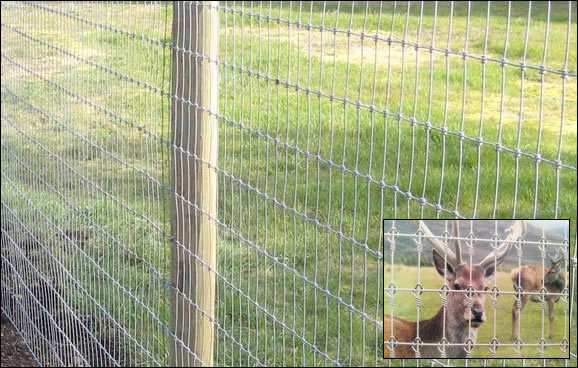

Deer Fence

Deer Fence, 96" high galvanized fencing, fixed knot mesh

Game Fence

High-tensile game fence for deer, elk, boar and large animals

6'3"x330' Fixed Knot 12.5 gauge 13/75/6.
Fence wire fully galvanized, each roll 1650 meter in length

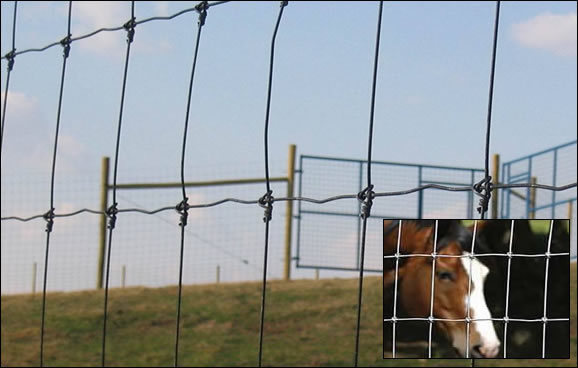

Horse Fence

Pasture fence for corrals
Designed to minimize injuries and secure horses safely
4' field fence
Wire: 12.5 gauge
Fabric: Galvanized mesh with fixed knots
USA standard

Choosing Mesh Fabric for Sheep, Horse, Deer, Cattle Fencing:

8 Line Wires Lamb / Sheep Fencing

12 Line Wires Horse Fencing

13 Line Wires Deer Fencing
