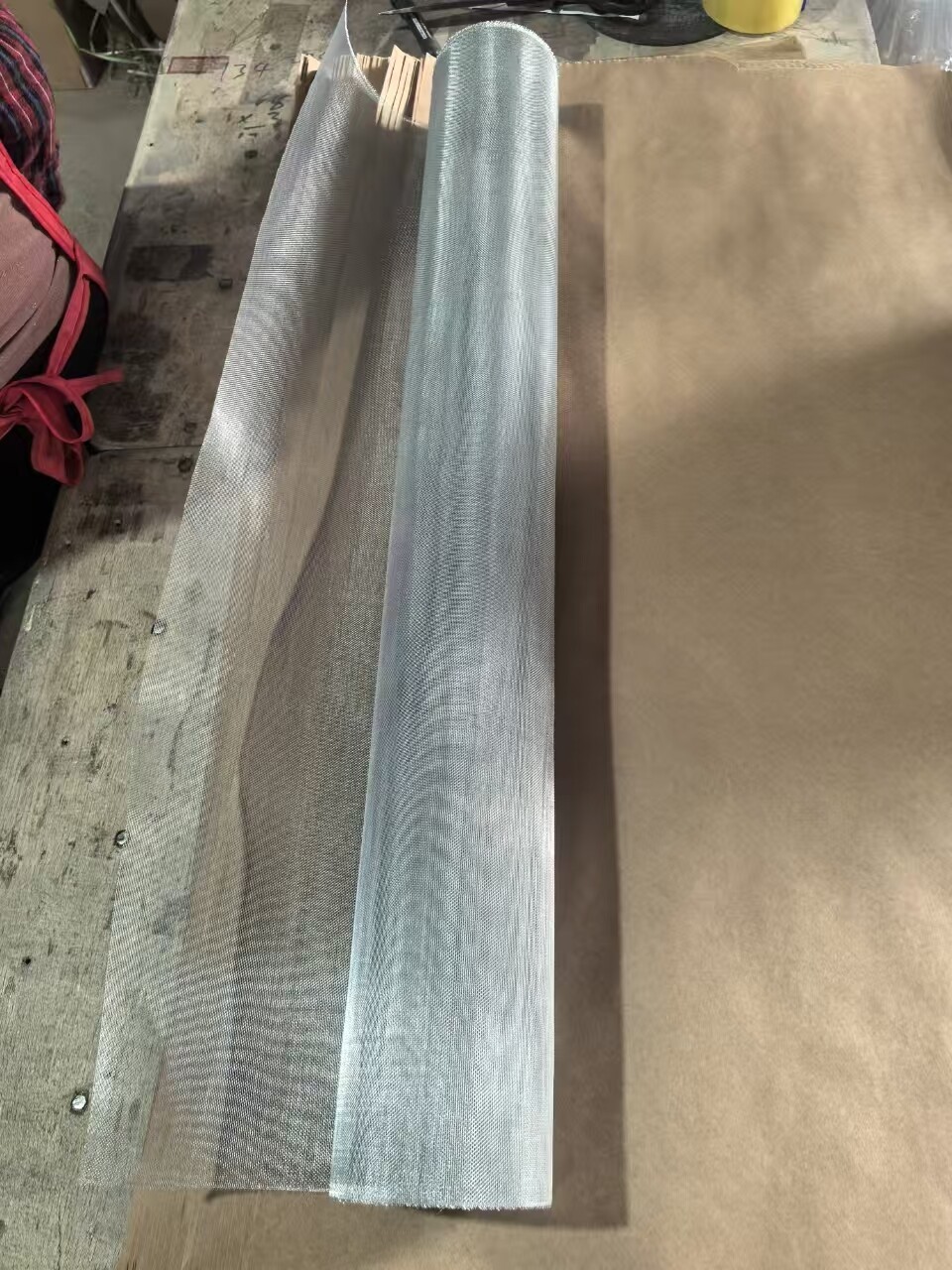

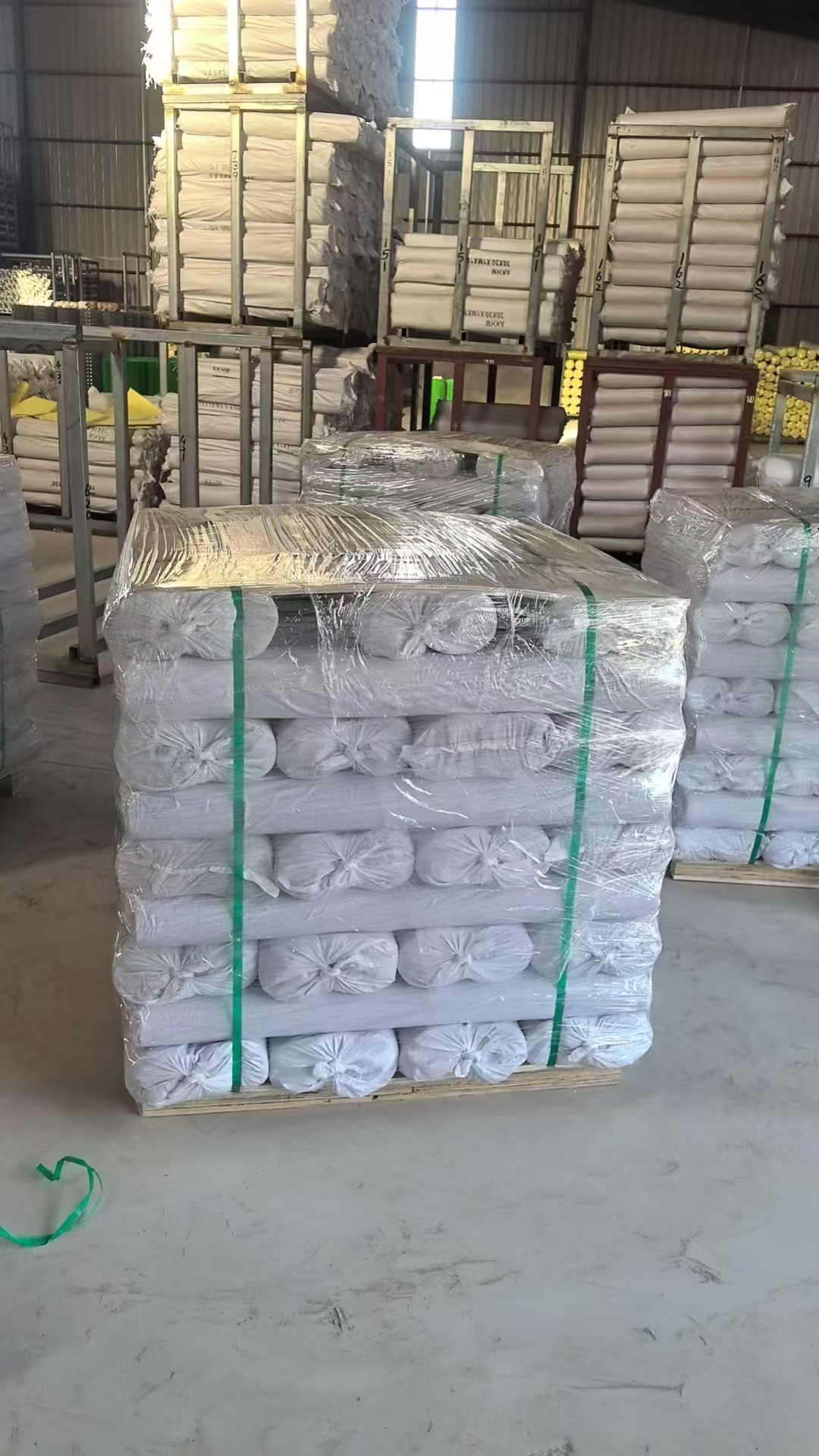

Electro-galvanized mesh

Name: Electro-galvanized mesh
SKU: 0

Tel：+86 15628891506

WhatsApp：+86 15628891506

Email：sales108@sdhsmetals.com

Message

Product Parameters

Product Introduction

Galvanized wire can be divided into hot-dip galvanized iron wire and electroplated galvanized iron wire according to the production process.

Hot plating: 8 # -36 # (3.8mm-0.19mm)

Electroplating: 8 # -30 # (3.8mm-0.15mm)

Gauge	SWG		BWG		AWG
Gauge	Inch	mm	Inch	mm	Inch	mm
8	0.16	4.046	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0403	0.912
20	0.036	0.914	0.035	0.839	0.0359	0.812
21	0.032	0.813	0.032	0.831	0.032	0.723
22	0.028	0.711	0.028	0.711	0.0285	0.644
23	0.024	0.61	0.025	0.635	0.02535	0.573
24	0.022	0.559	0.022	0.559	0.02256	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.1594	0.405

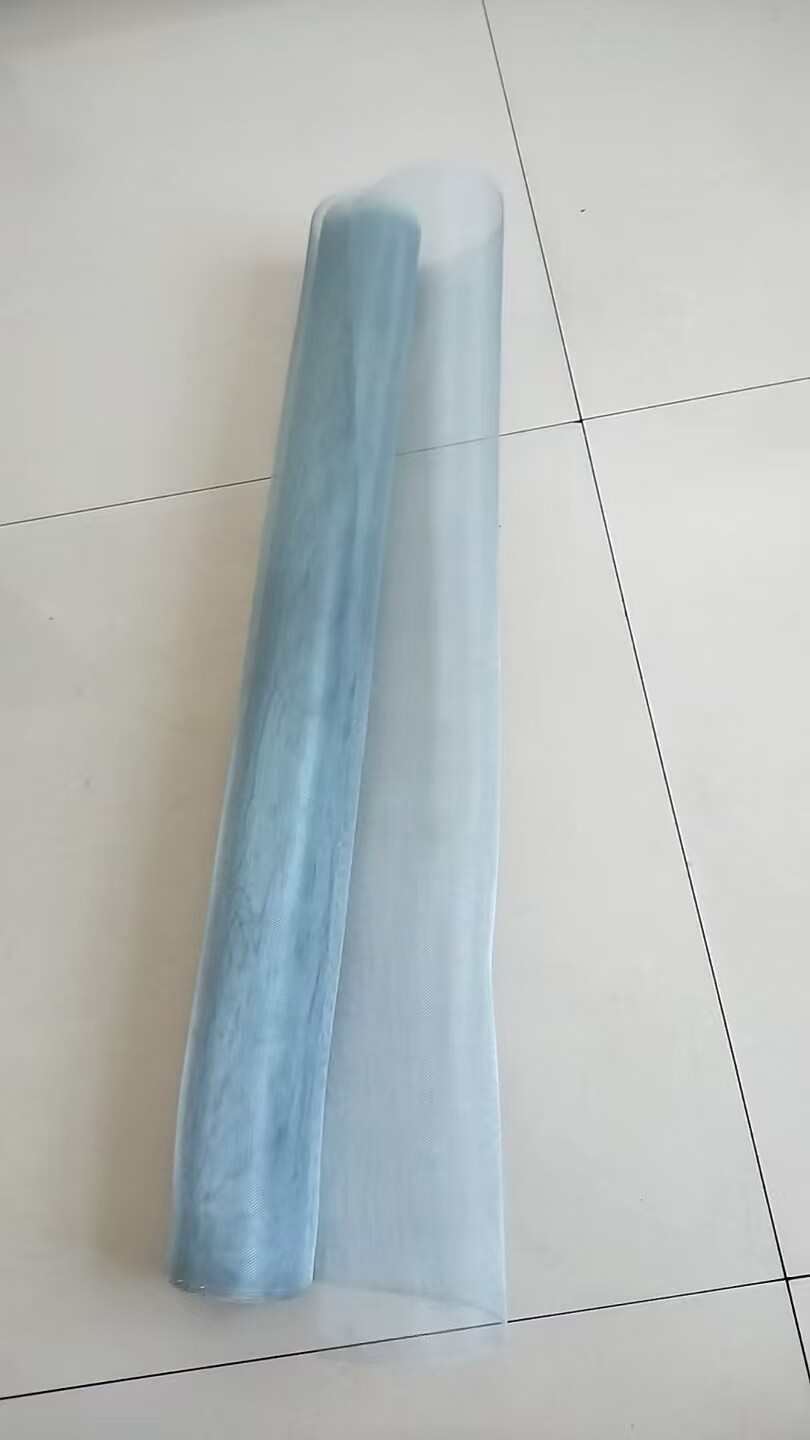

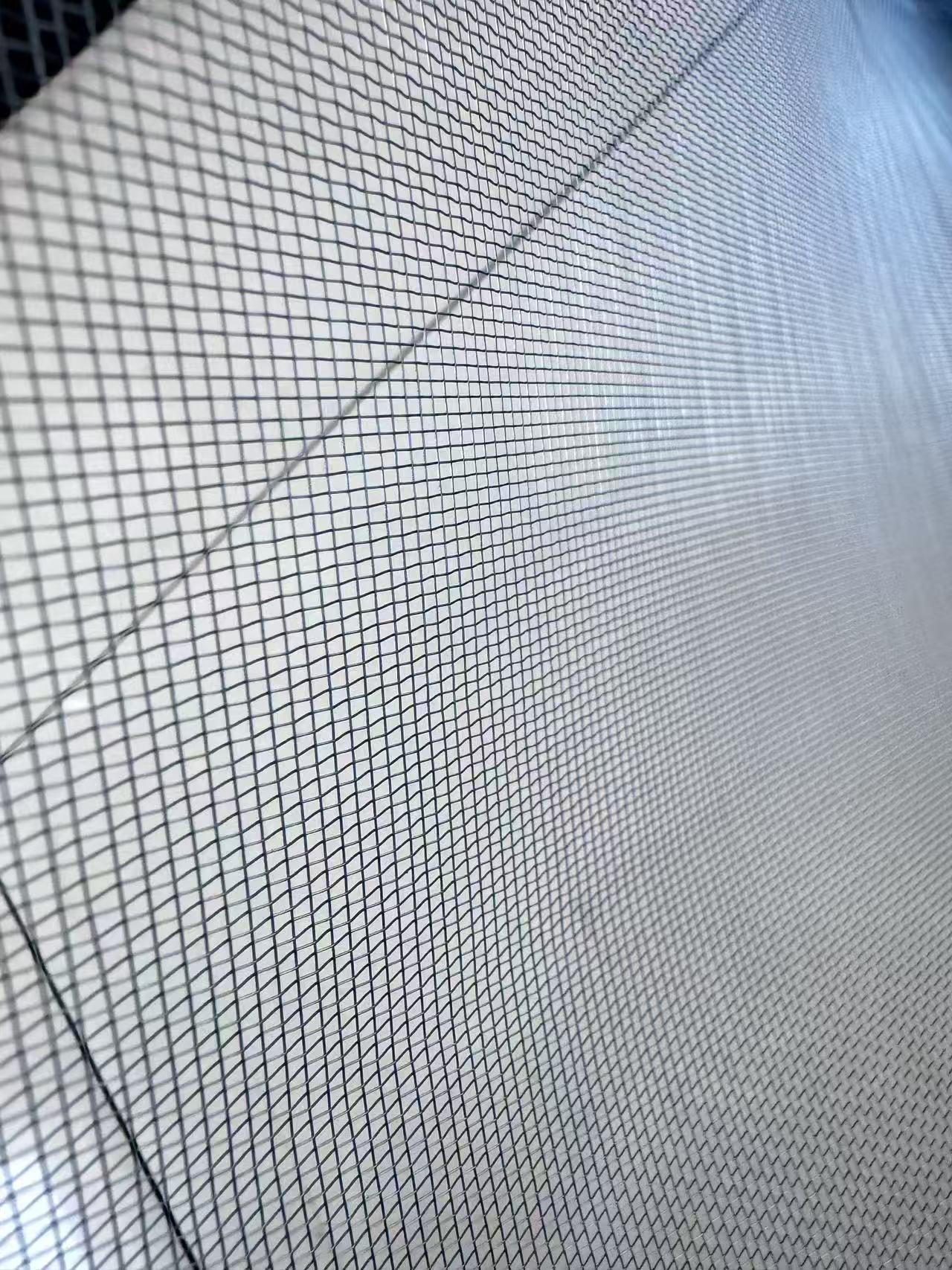

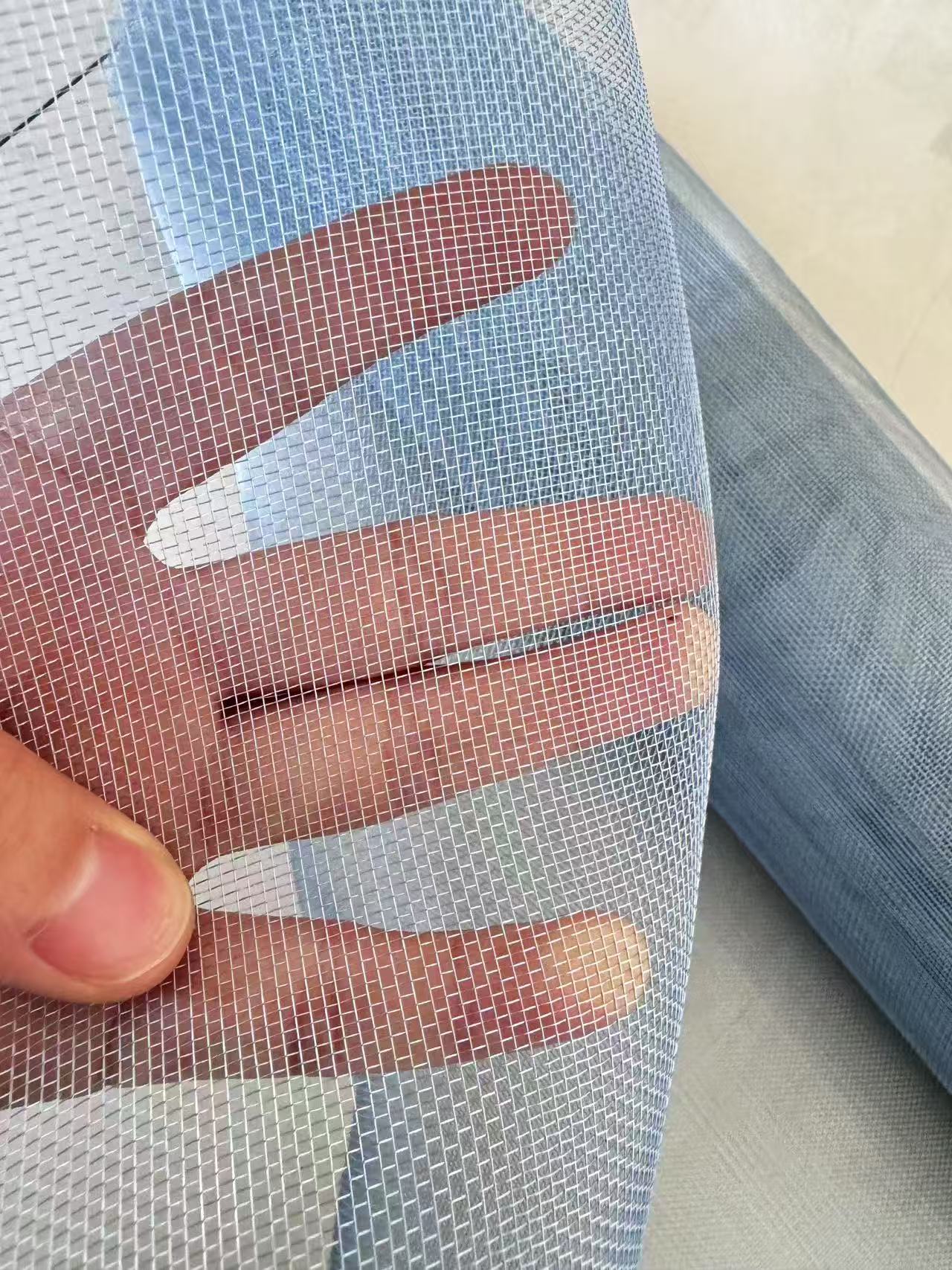

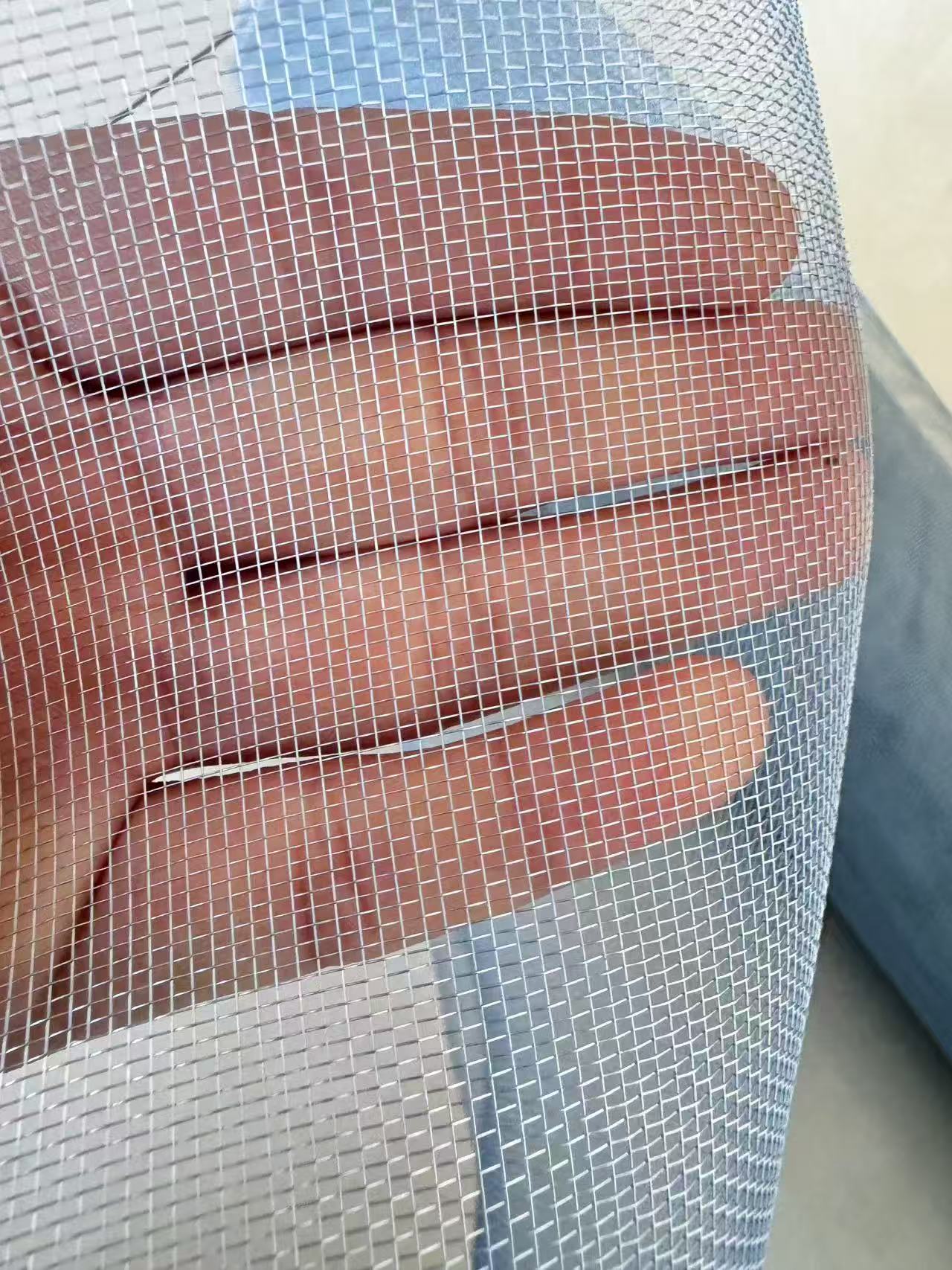

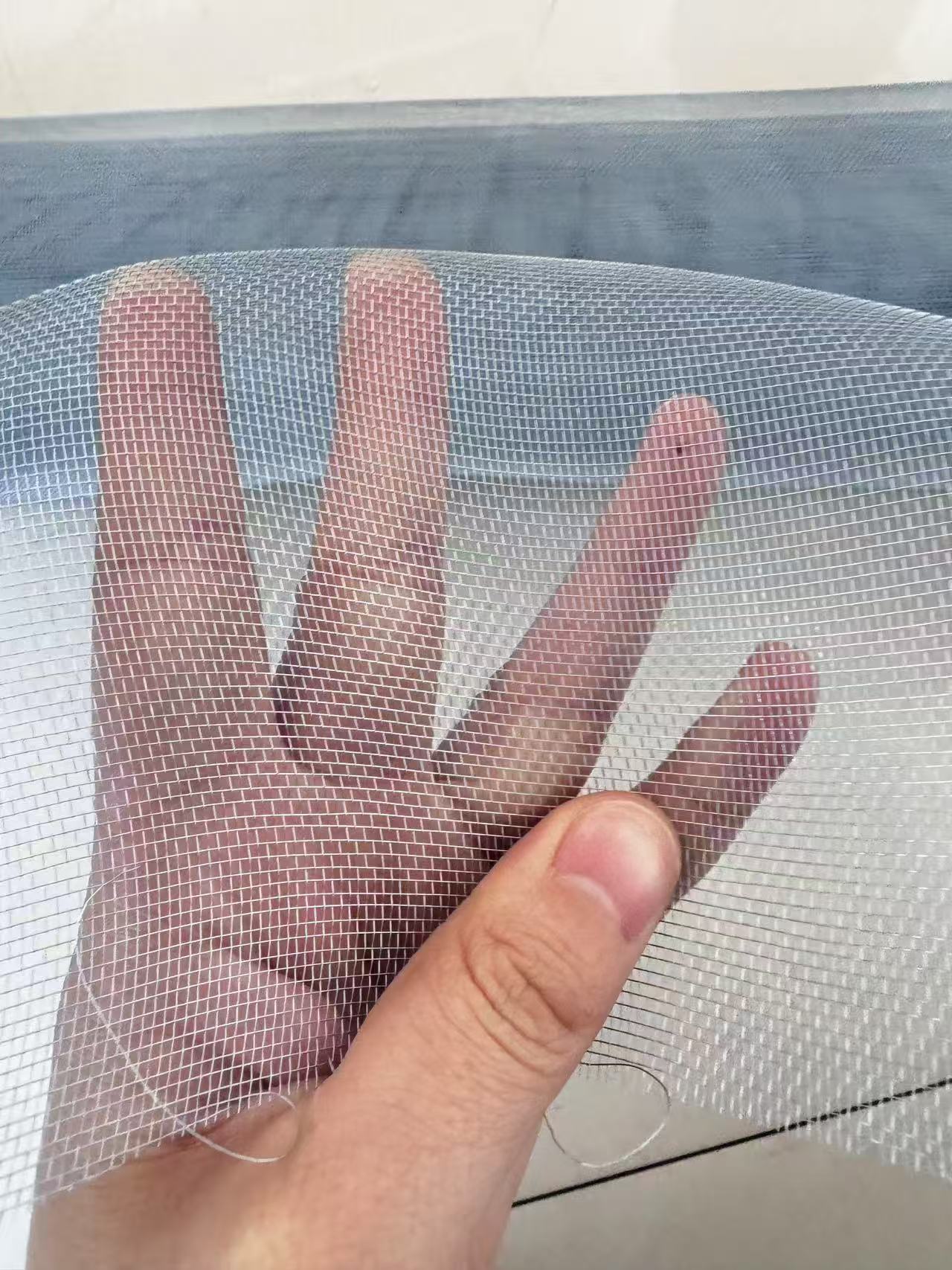

Square mesh, also known as wire mesh, is made of galvanized wire, iron wire, etc. woven in a plain weave.

Features: Precise structure, uniform mesh, good corrosion resistance, and durability.

Classification: According to the order of galvanizing and weaving, it can be divided into two types: weaving before plating and electroplating before weaving.

Mesh size/inch	Wire Diameter (mm)	Mesh Diameter (mm)
2	1.6	11.1
4	1	5.35
6	0.8	3.43
8	0.6	2.57
10	0.5	2.04
12	0.5	1.61
16	0.4	1.18
20	0.3	0.97
30	0.23	0.62
40	0.21	0.43
50	0.19	0.32

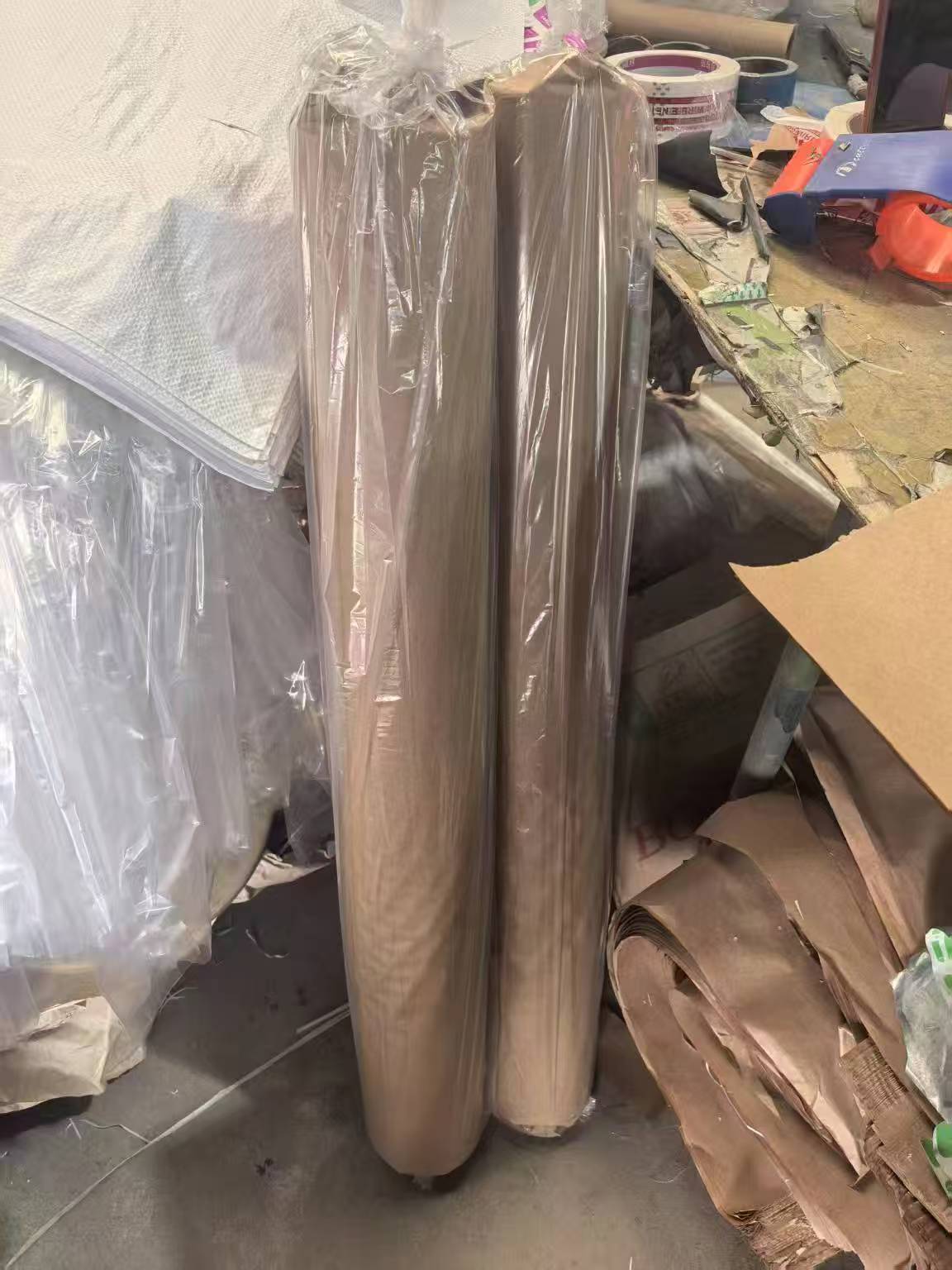

1mX25m, 1mX30m, 1.2mX25m, 1.2mX30m, etc. can be customized according to customer requirements
